TY1X30 KN Conductor tensioning tools

FOB Reference Price:Get Latest Price
US $15,000-30,000 / Sets | 1 Set/Sets / (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BOYU
Model Number:
b-TY1x30- 1-2
Type:
Hydraulic tensioner
OEM Service offered:
ISO9001
SupplyAbility
SupplyAbility:
100 Set/Sets per Month /
Packaging & Delivery
Packaging Details
According to the customer request.
Port
Shanghai / Ningbo
Lead Time :
within 30 days

1.Main parts Rexroth Wika
2.Max tension 1X30kN
3.Engine Honda
4.12V air cooling

TY1X30 KN Conductor tensioning tools



The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break,

high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance.

The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is

also adoptedwhere lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be

loaded, transported and transferred.





 Performance parameter

Max continuous tension: 1*30KN

Corresponding speed:2.5km/h

Max continous laying speed:5km/h

Corresponding tension:1*20KN



Structure parameter

Tension wheel diameter:1300mm

Max diameter of applicable :40mm

Groove number:5

Total weight:2400kg

overall dimension (length*width*height):4000*1900*2300mm



Main comfigurations

Engine:Japan Honda

Speed reducer :German Rexroth / Italy Brevini

Hydraulic meter: German WIKA



 Performance parameter Max continuous tension1*40KN
  Corresponding speed2.5km/h
 Structure parameter Tension wheel diameter1300mm
  Max diameter of applicable40mm
  Groove number5
 Main comfigurations  EngineCummins
  Main motorGerman Rexroth
  Speed reducerGerman Rexroth

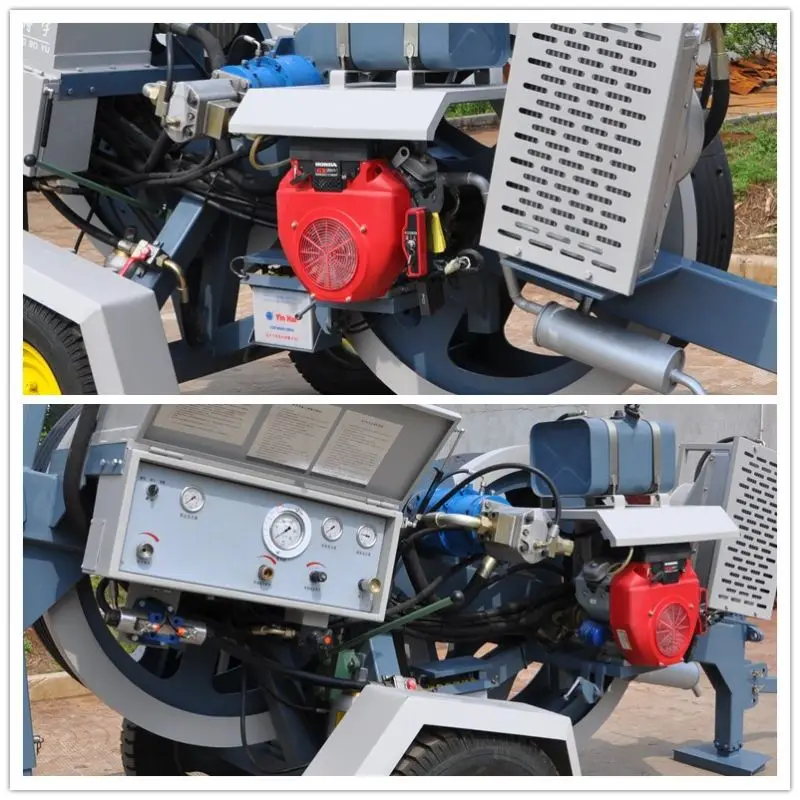

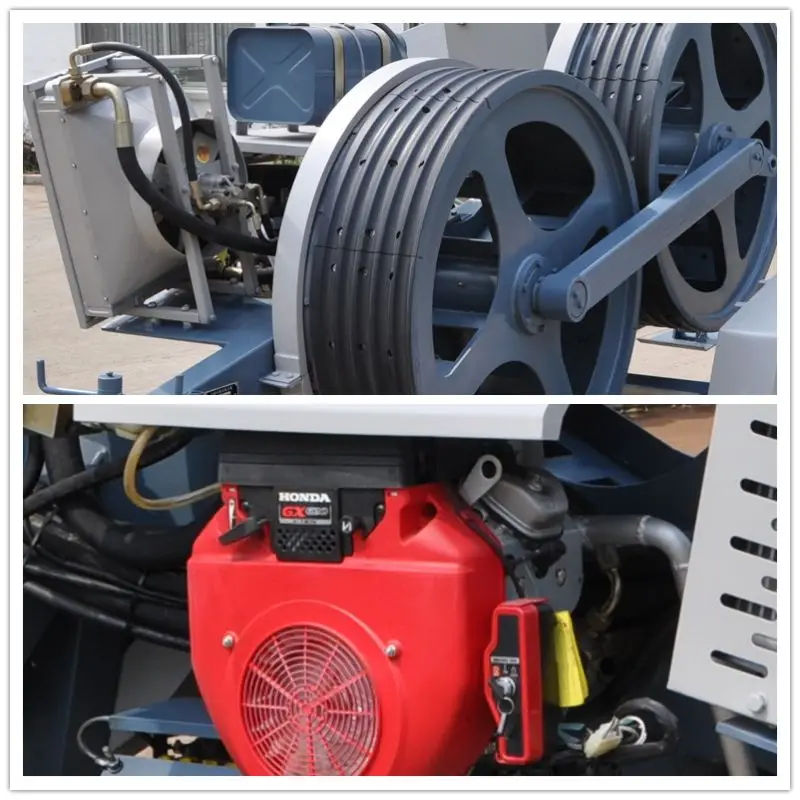

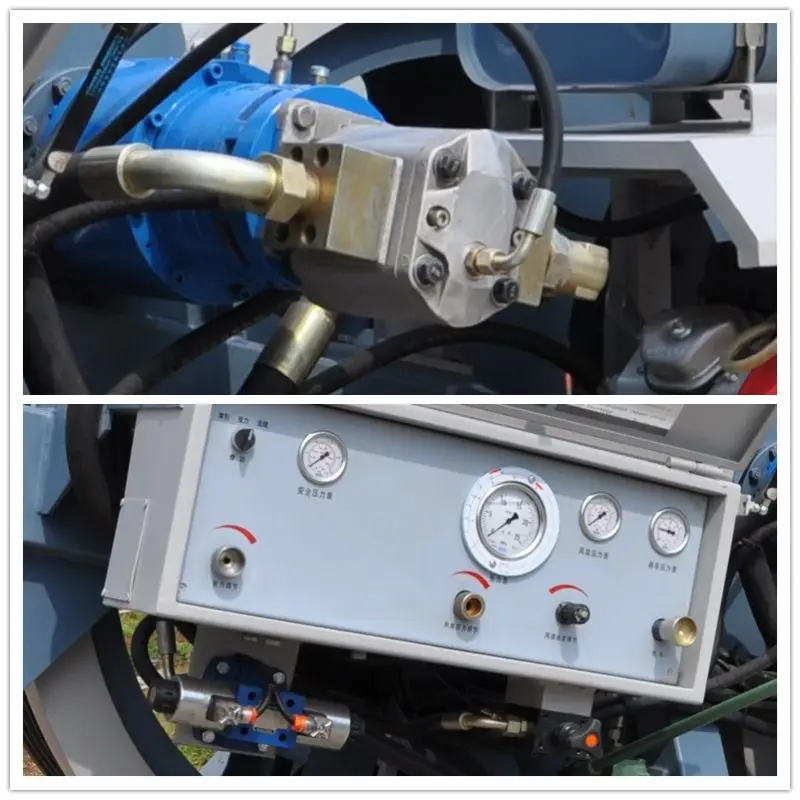

More pictures:



workshop2workshop3workshop4

Production workshop

workshop1IMG_3584IMG_3585IMG_3627IMG_3588
