Groove Number 5 Overhead Line Equipment Hydraulic Tensioner With Engine HONDA

FOB Reference Price:Get Latest Price
US $500-1,000 / Sets | 1 Set/Sets Groove number 5 Hydraulic Tensioner (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
BOYU BRAND
Model Number:
TY1X6
Type:
Hydraulic tensioner
OEM Service offered:
ISO9001
SupplyAbility
SupplyAbility:
Set/Sets per Month Groove number 5 Hydraulic Tensioner
Packaging & Delivery
Packaging Details
According to the customer request..
Port
Shanghai / Ningbo
Lead Time :
within 30 days



Product Description



Groove Number 5  Overhead Line Equipment Hydraulic Tensioner  With Engine HONDA







Quick details:



1.Tension Stringing Equipment

2.Groove number 5 Hydraulic Tensioner

3.Engine: HONDA GX390
4.Max intermittent pull: 5kN
5.Engine Honda
6.Max speed: 5km/h

7.Boyu Brand





TY1x6 Hydraulic Tensioner

Compared with other larger tensioners, this machine is mainly applied in tension Synthetic fiber rope-polyethylene ropes

Characteristics

Bull-wheel diameter: 450 mm

Max dyneema rope diameter: 20mm

Groove number: 5

Total weight: 700kg

Overall dimension (length*width*height): 1400*1000*900mm

Performance

Max intermittent pull: 5kN

Max continuous pull: 6kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 3kN

Max reverse pulling force: 5kN

Main configuration

Engine: HONDA

Hydraulic pump: Tianjin Parker

Main motor: OMS-315

Hydraulic meter: German AFRISO

Engine

 HONDA GX390:9.8kw/3600rpm

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Grounding connection point

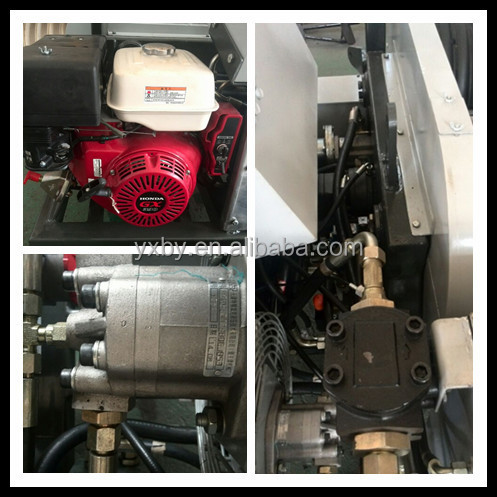

More pictures:

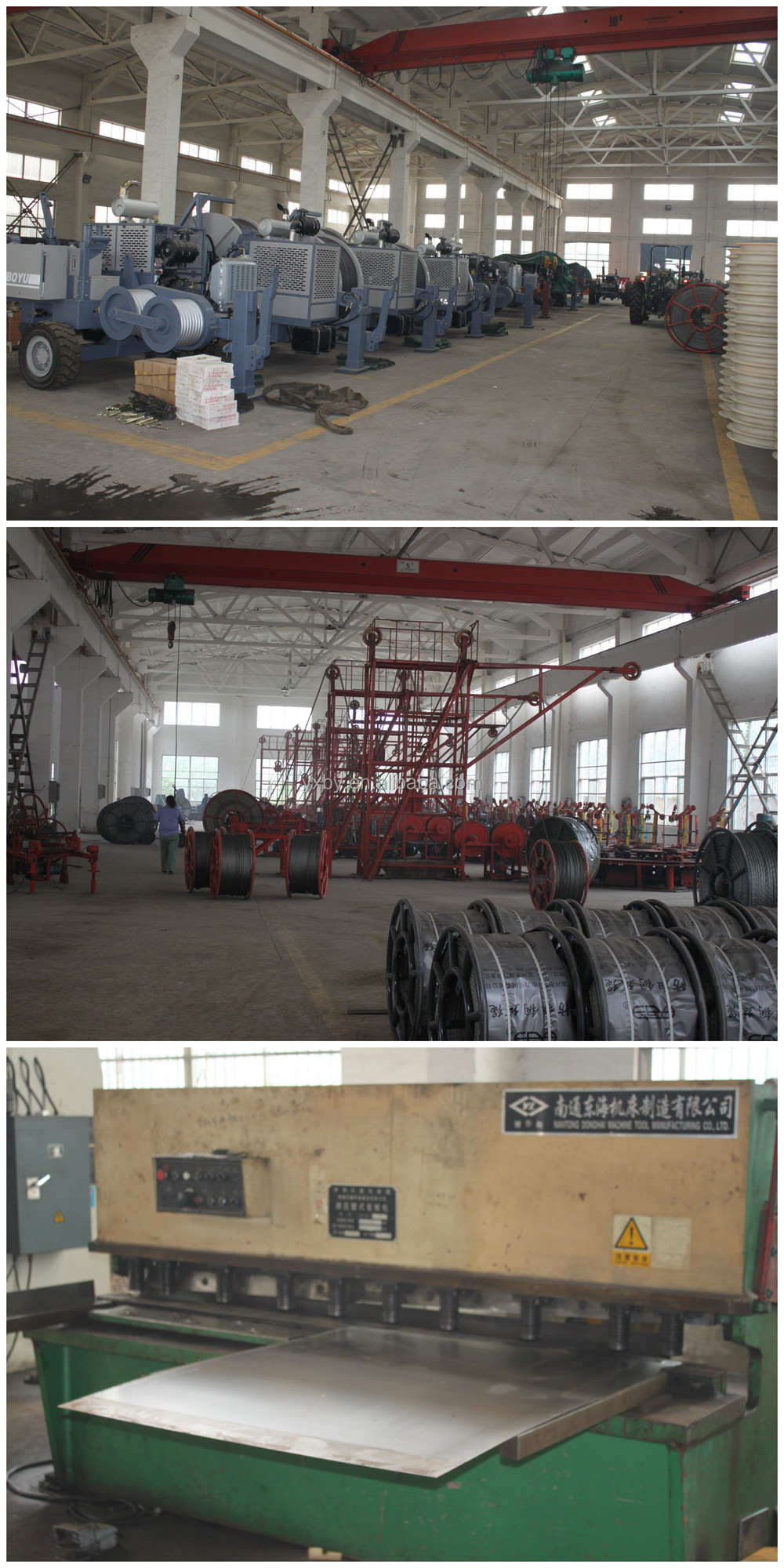

Production workshop



Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany.

...



Customer visiting:



   Groove Number 5  Overhead Line Equipment Hydraulic Tensioner  With Engine HONDA
