90KN overhead transmission hydraulic 9T conductor puller

FOB Reference Price:Get Latest Price
US $50,000-65,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland), Jiangsu, China (Mainland)
Brand Name:
BOYU BRAND
Model Number:
b-TY90-20170622-4
Type:
Hydraulic Pullers
OEM Service offered:
ISO9001
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
According to customers' requirements
Port
Shanghai / Ningbo
Lead Time :
within 30 days

1. Max pull: 280kN
2. Engine: Cummins 298kw
3. Main pump & Reducer: German Rexroth
4. German WIKA

90KN overhead transmission hydraulic 9T conductor puller



TY280  Hydraulic Puller

This machine is mainly applied in long-span and mountainous areas

and foothills for tension stringing of 4 bundle conductor of 500kV or twin bundle conductor of 220kV

and conductor 800mm2 below, allowing for the tension stringing of 500kV haulage rope in various terrains.



Performance parameter

Max intermittent  pulling force : 280KN

Max continous pulling force: 250KN

Corresponding speed: 2.5km/h

Max continous pulling speed: 5km/h

Corresponding pulling force: 120KN



Structure parameter

Puller wheel diameter: 960mm

Groove number: 11

Max diameter of applicable steel wire rope : 38mm

Max diameter of coupling : 100mm

Electric systerm: 24V

Max diameter of applicable wire coil: 1600mm

Total weight: 12800kg

overall dimension (length*width*height): 5800×2500×2850mm



Main configurations

Engine:Cummins

Main pump: German Rexroth

Main moterspeed reducer : German Rexroth

Tail bracket hoisting motor: American Eton

Hydraulic meter: German WIKA



Performance parameter

max inMax intermittent  pulling force 280kn
  Max continous pulling force 250kn
 Corresponding speed 2.5km/h
 Max continous pulling speed 5km/h


Corresponding pulling force

 120KN

Structure parameter

 Puller wheel diameter 960mm
  Groove number 11
  Max diameter of applicable wire coil: 1600mm

Main comfigurations

 Engine Cummins
  Main pump German Rexroth

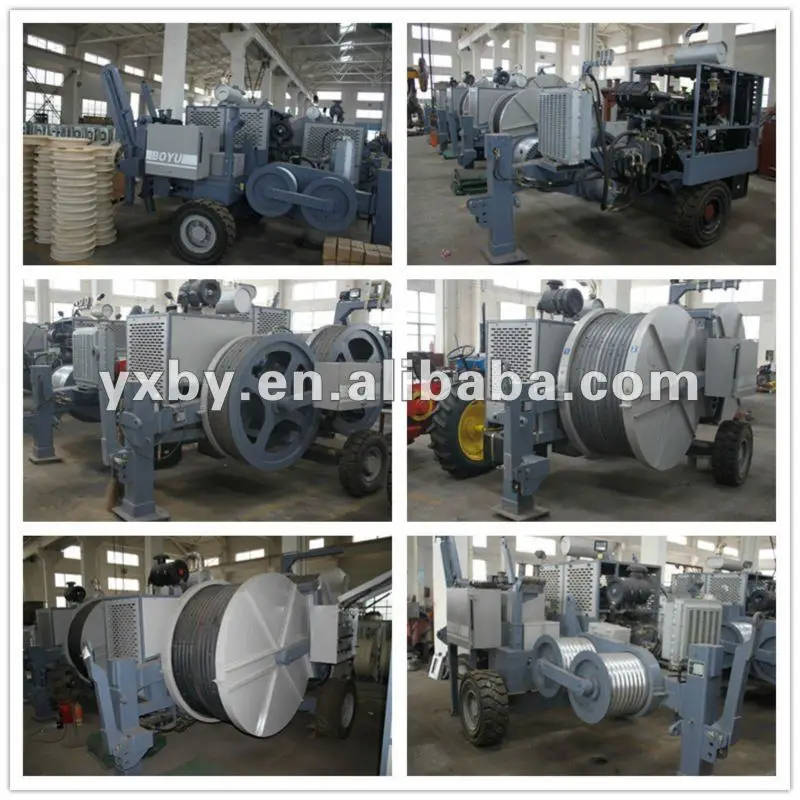

Production pictures

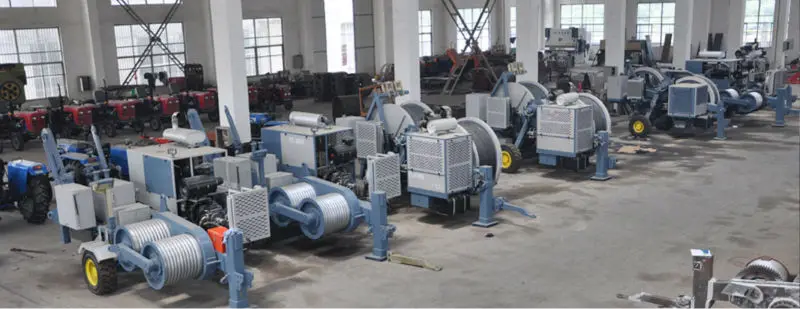

Production workshop

IMG_3584IMG_3585IMG_3627IMG_3588



Company introduction

factory

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system



History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.





...
